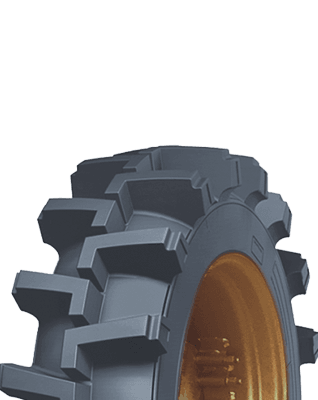

CB540
| Size | TRA Code | Ply Rating | LUG# | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Max. Load Capacity at Cold | |
|---|---|---|---|---|---|---|---|---|---|
| (kg) | (kPa) | ||||||||
| 8.3-20 | PR-1 | C/6 | 14 | 70.0 | W7 | 950 | 210 | 970 | 270 |
| 8.3-20 | PR-1 | D/8 | 14 | 70.0 | W7 | 950 | 210 | 1130 | 350 |
| 8.3-24 | PR-1 | C/6 | 15 | 70.0 | W7 | 1050 | 210 | 1135 | 270 |
| 8.3-24 | PR-1 | D/8 | 15 | 70.0 | W7 | 1050 | 210 | 1275 | 330 |
| 9.5-24 | PR-1 | C/6 | 15 | 80.0 | W8 | 1150 | 240 | 1315 | 240 |
| 9.5-24 | PR-1 | D/8 | 15 | 80.0 | W8 | 1150 | 240 | 1475 | 290 |
| 11.2-24 | PR-1 | C/6 | 16 | 82.0 | W10 | 1205 | 285 | 1465 | 210 |
| 14.9-24 | PR-1 | E/10 | 90.0 | W15L | 1410 | 410 | 1990 | 230 | |
| 18.4-24 | PR-1 | E/10 | 17 | 90.0 | W16L | 1505 | 467 | 2300 | 180 |
| 14.9-26 | PR-1 | D/8 | 18 | 90.0 | W13 | 1460 | 378 | 1760 | 180 |
| 12.4-28 | PR-1 | D/8 | 18 | 85.0 | W11 | 1315 | 315 | 1785 | 200 |
| 14.9-28 | PR-1 | D/8 | 19 | 90.0 | W13 | 1510 | 378 | 1880 | 180 |
| 16.9-30 | PR-1 | E/10 | 95.0 | W15L | 1585 | 430 | 2455 | 200 | |
| 18.4-30 | PR-1 | E/10 | 18 | ||||||
| 11-32 | PR-1 | C/6 | 85.0 | W10 | 1460 | 305 | 1080 | 160 | |
| 16.9-34 | PR-1 | E/10 | 95.0 | W15L | 1685 | 430 | 3385 | 220 | |
| 18.4-34 | PR-1 | E/10 | 90.0 | W16L | 1755 | 467 | 2990 | 180 | |
| 13.6-38 | PR-1 | D/8 | 95.0 | W12 | 1710 | 345 | 2780 | 250 | |
| 18.4-38 | PR-1 | E/12 | 21 | 90.0 | W16L | 1855 | 467 | 3575 | 230 |
View complete information ↓
*Reserves the rights of final interpretation and modification
